GTJ Test

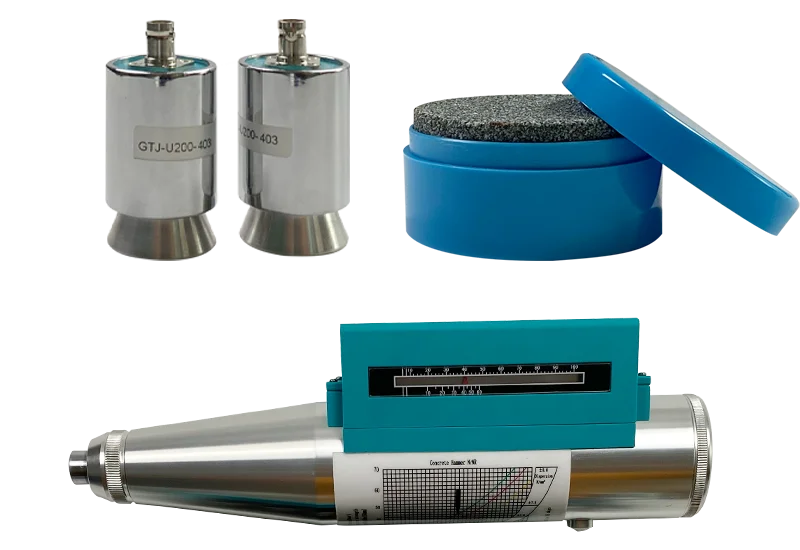

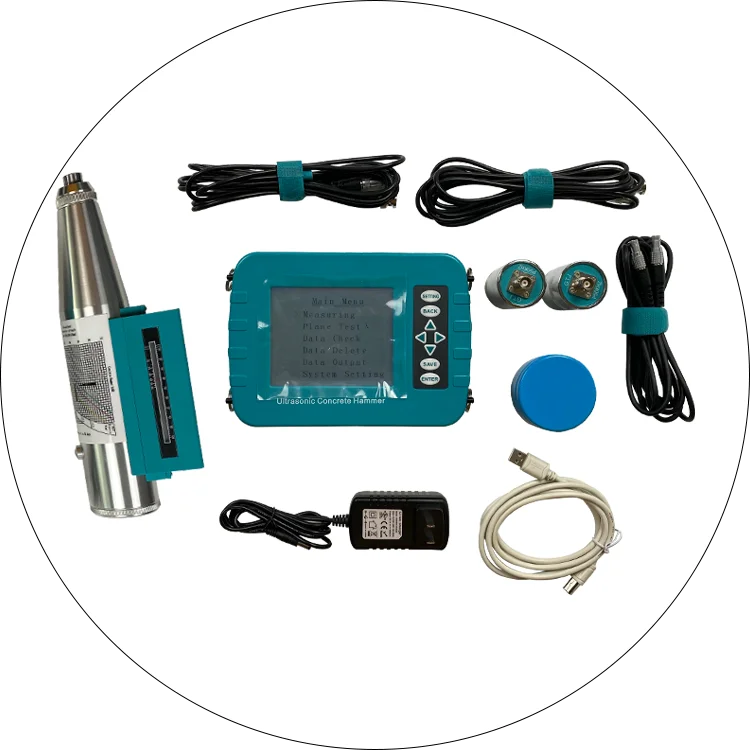

U200 Ultrasonic pulse velocity tester
Ultrasonic Rebound Hammer is a comprehensive instrument for testing the strength of concrete. It can be used as an ordinary rebound tester or as an ultrasonic rebound comprehensive tester. It can measure the rebound value as well as the sound time and sound speed. It is suitable for non-destructive testing of common concrete compressive strength in various construction projects.
PriceRequest price
Available on request
Key product information
- Model: GTJ-U200
- Size: 420*140*335MM
- Weight: 5.5KG
- Waterproof level: IP65
Final specifications, commercial terms, lead time, and documentation are confirmed against your application.
Ultrasonic Rebound Hammer is a comprehensive instrument for testing the strength of concrete. It can be used as an ordinary rebound tester or as an ultrasonic rebound comprehensive tester. It can measure the rebound value as well as the sound time and sound speed. It is suitable for non-destructive testing of common concrete compressive strength in various construction projects.
Product route
- Category
- Concrete Testing Equipment
- Manufacturer
- GTJ Test
- Industries
- Construction & Infrastructure, Laboratories & Quality Control
- Condition
- New
ModelGTJ-U200
Size420*140*335MM
Weight5.5KG
Waterproof levelIP65
Screen size5inches

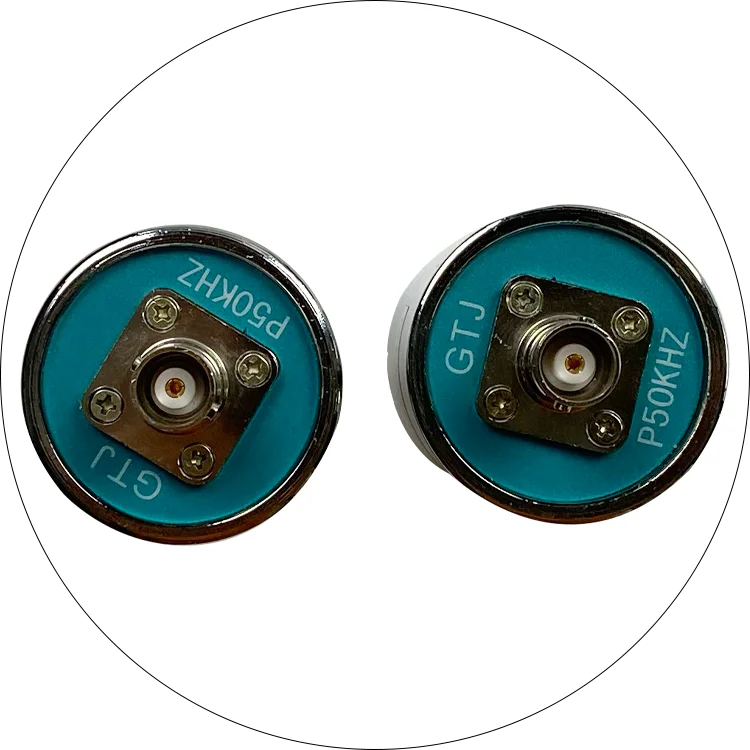

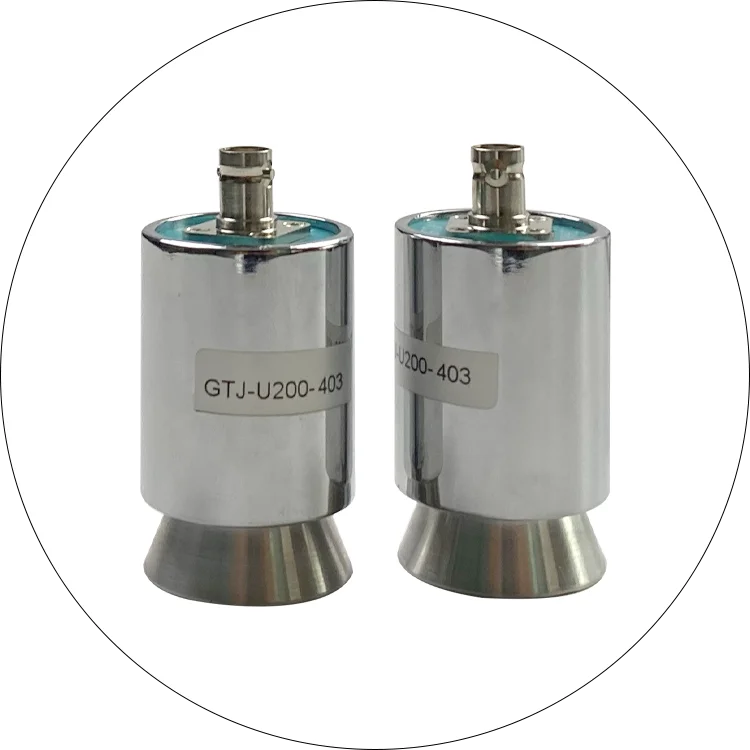

Ultrasonic transducer operating frequency50KHz
Impact length of ram75.0 ± 0.3 mm
Rebound value indication error≤±0.5
Rebound value average steel anvil rate80±2
Working environment-10°C~40°C
Product ModelU200
Host parameterWaterproof level: IP65 Screen size: 5inches
Ultrasonic indication error±0.1μs
Instrument ultrasonic frequency range5Hz~ 500KHz
Data transmission modeUSB transmission interface; Wireless cloud transmission (optional)
Springback apparatus nominal kinetic energy2.207J
Stiffness of Spring Strike785.0+40.0(N/m)
Impact length of the ram75.0 ± 0.3 mm
Power supply modeLarge-capacity lithium battery, power supply time is more than 8 hours
Product-specific documentationProvided with the selected technical configuration
