SZR-5 Intelligent asphalt penetration Testing Machine
Intelligent asphalt penetration Testing Machine
PriceRequest price
Available on request
Key product information
- Model: SZR-5
- Needle entry time control: adjustable within 0-99 seconds
- Needle penetration accuracy: 0.01mm
- Needle penetration depth device: precision displacement measuring device.
Final specifications, commercial terms, lead time, and documentation are confirmed against your application.
Intelligent asphalt penetration Testing Machine
Product route
- Category
- Asphalt & Bitumen Testing Equipment
- Manufacturer
- GTJ Test
- Industries
- Construction & Infrastructure, Laboratories & Quality Control, Roads & Highways
- Condition
- New
ModelSZR-5
Needle entry time controladjustable within 0-99 seconds
Needle penetration accuracy0.01mm
Needle penetration depth deviceprecision displacement measuring device.
Needle entry time control deviceadjustable within 0-99 seconds, the time error is less than ±0.1 second.
Needle penetration accuracy0.01mm.
Maximum penetration depth40mm.
Standard needleThe total weight of the needle and the needle bar is 2.5±0.05g, which meets the specifications of GB/T4509 and T0604.
Penetrating rod weight97.5g

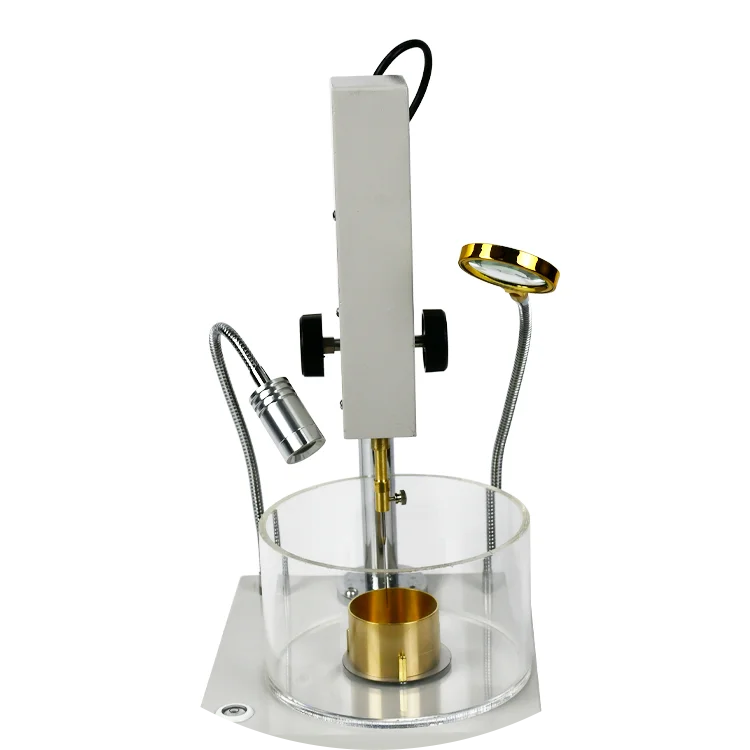

Flat-bottomed glass dishfor Hard glass cylinder, the volume is greater than 1.5L and the depth is greater than 80mm. There is a holder for the sample vessel to make it stable.
Sample containercopper, cylindrical and flat bottom. The inner diameter of the sample dish is 55mm and the depth is 35mm (suitable for samples with penetration of less than 200).
Lifting bracketIt can be adjusted freely to facilitate the needle tip to align with the sample plane.
Phone+86 132 2012 0666（WeChat）
Product-specific documentationProvided with the selected technical configuration
Sibtain Pakistan company profileOfficial PDF
Manufacturer informationExternal website
