ZK613-2
Available on request
Product imagery
GTJ Test

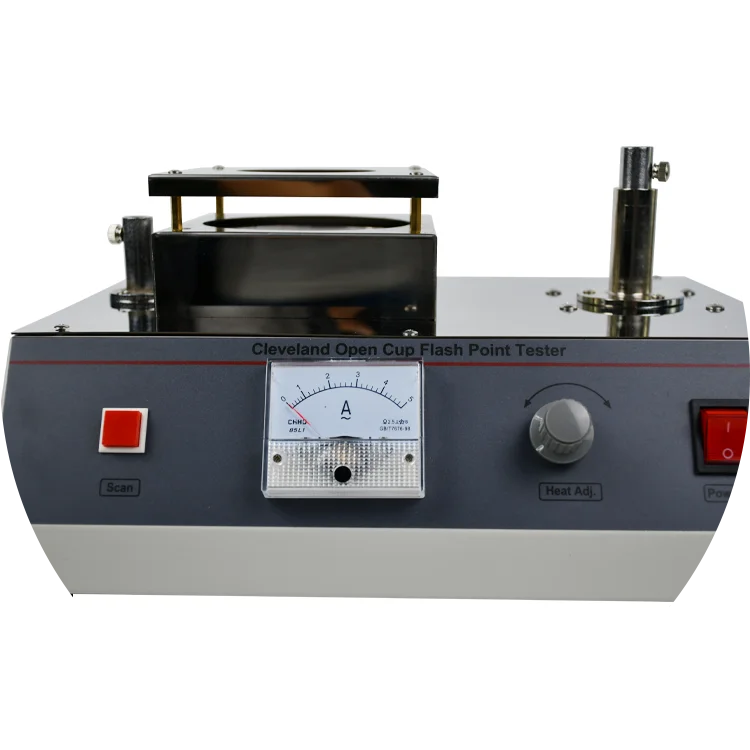

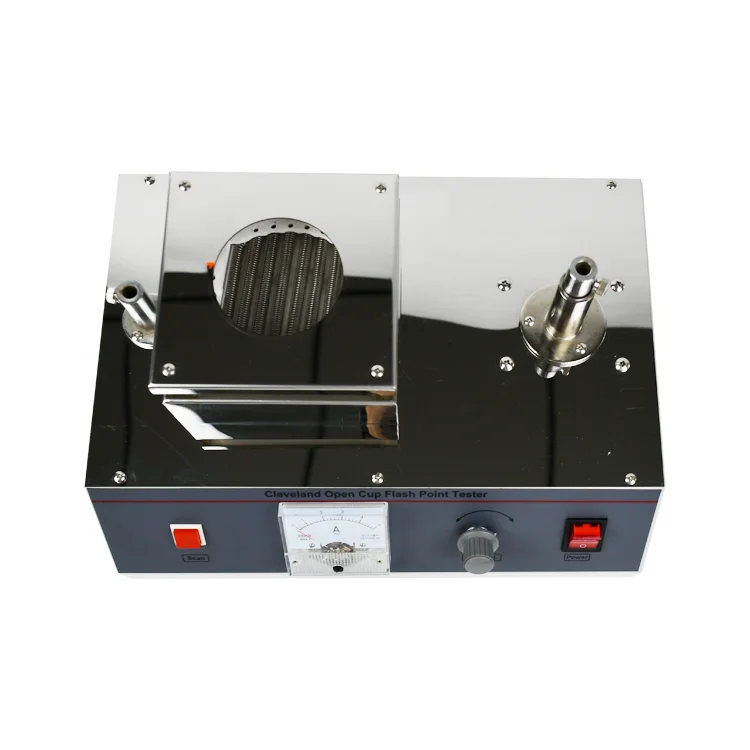

SYD-3536 Cleveland asphalt opening flash point meter
Cleveland flash point meter, suitable for The Cleveland Opening cup (REFERRED to as COC) measurement of viscous petroleum pitch, coal pitch, and liquid petroleum pitch material with a flash point above 79℃, to assess the construction safety explosion-proof, no open fire, power is continuously adjustable 0~ 600W, quartz tube electric furnace heating
PriceRequest price
Available on request
Final specifications, commercial terms, lead time, and documentation are confirmed against your application.
Cleveland flash point meter, suitable for The Cleveland Opening cup (REFERRED to as COC) measurement of viscous petroleum pitch, coal pitch, and liquid petroleum pitch material with a flash point above 79℃, to assess the construction safety explosion-proof, no open fire, power is continuously adjustable 0~ 600W, quartz tube electric furnace heating
Product route
- Category
- Asphalt & Bitumen Testing Equipment
- Manufacturer
- GTJ Test
- Industries
- Construction & Infrastructure, Laboratories & Quality Control, Roads & Highways
Power supplyAC 220V±10%,50Hz
Heating deviceexplosion-proof, no open fire, power is continuously adjustable 0~ 600W, quartz tube electric furnace heating
Sweep deviceautomatic sweep
Thermometers0~400C, degree 2"C
Ignition device(1) Ignition source: gas (or other combustible gas for civil use), (2) Nozzle aperture: 0.6~0.8 mm, Electric furnace heating power is continuously adjustable 0~1000W. The heating wire is protected by transparent quartz tube, no flame and explosion-proof, and the heating speed is fast
Ambient temperature10 ℃ ~ 50 ℃
Relative humidity85% or less
Overall power consumptionno more than 650W
Size410 * 330 * 225mm
Weight4.75 kg
Product-specific documentationProvided with the selected technical configuration
Sibtain Pakistan company profileOfficial PDF
Manufacturer informationExternal website
