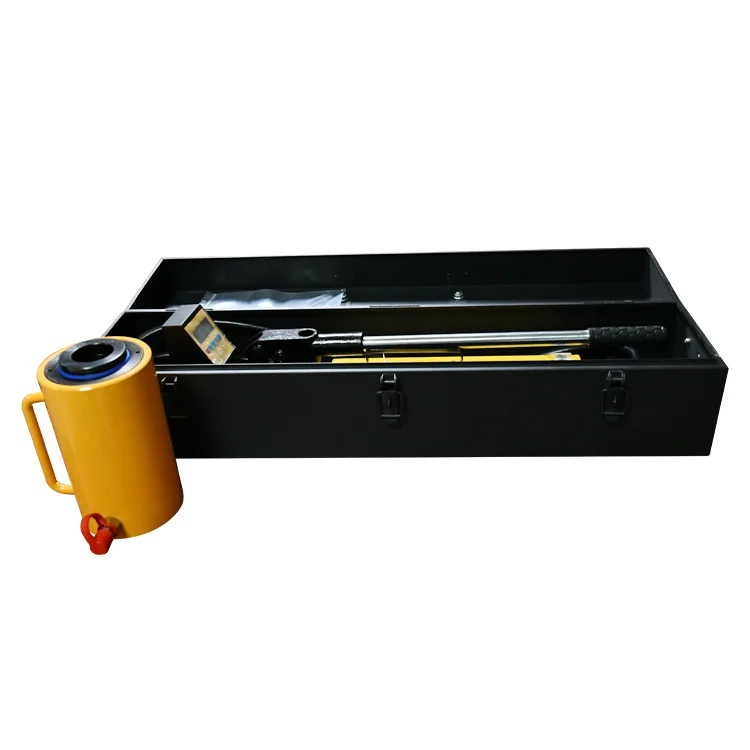

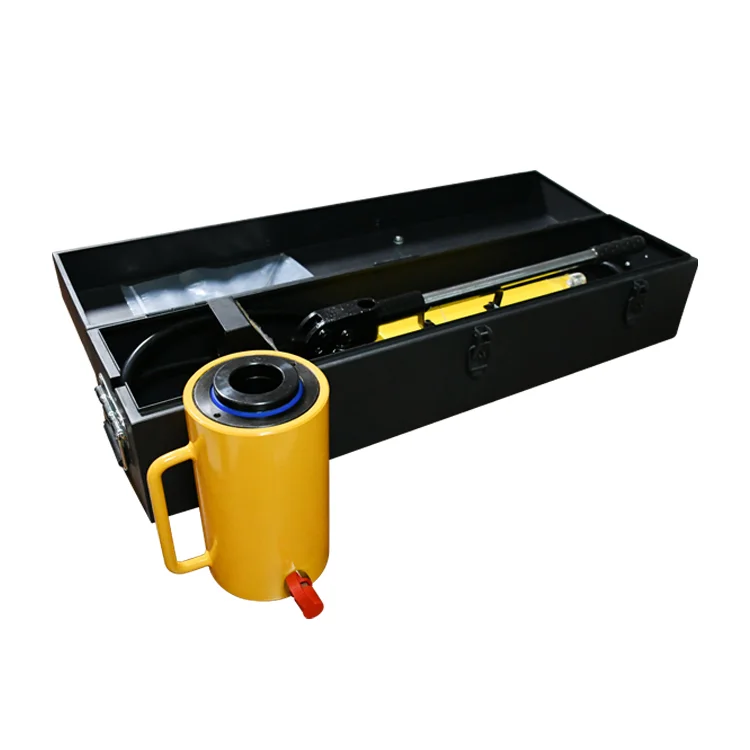

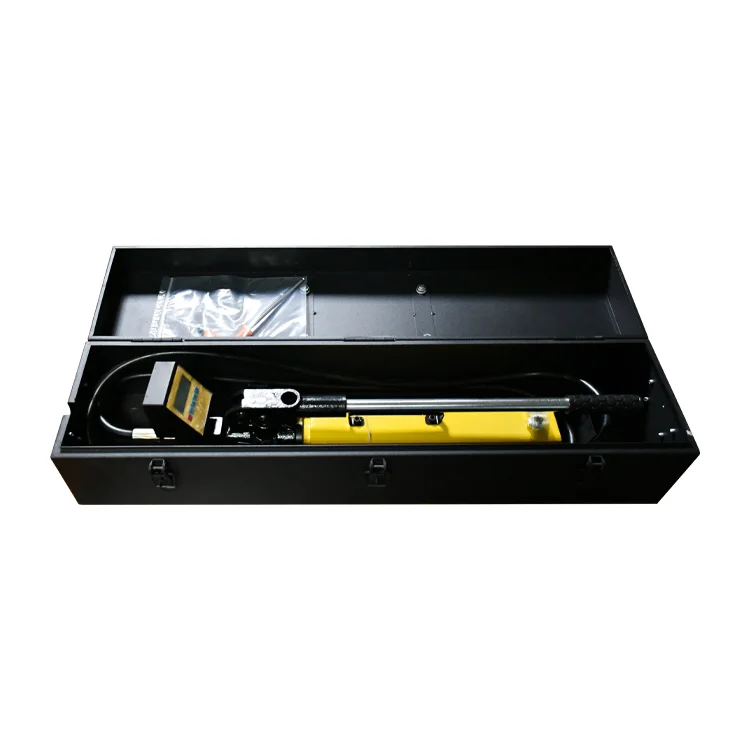

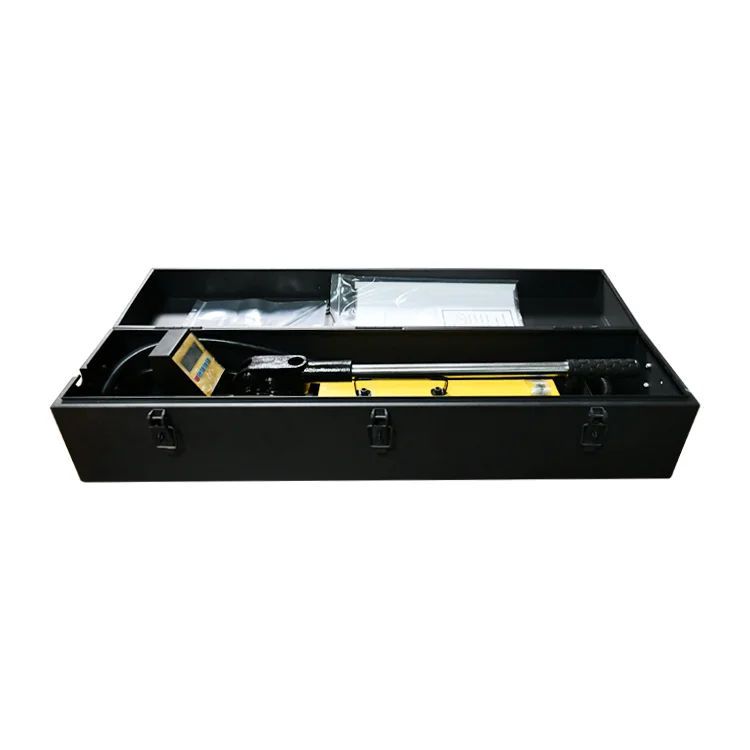

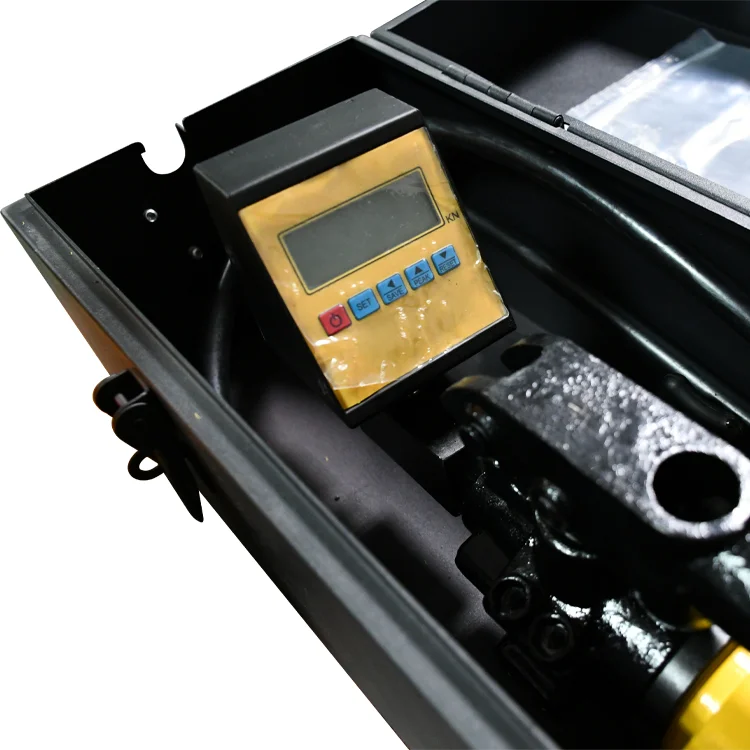

LOL30T Pull-out Anchor Tester
China leading construction material testing equipment manufacturer. We will contact you within 1 working day, please pay attention to the email with the suffix “@gtj-test.com”.
PriceRequest price
Available on request
Key product information
- Product number: GTJ-10 · GTJ-20 · GTJ-30 · GTJ-50 · GTJ-100
- Center hole of cylinder: 27mm · 35mm · 45mm · 60mm · 90mm
- Cylinder stroke: 60mm · 80mm · 80mm · 120mm · 150mm
- Measuring range: 0-100kN · 0-200kN · 0-300kN · 0-500kN · 0-1000kN
Final specifications, commercial terms, lead time, and documentation are confirmed against your application.
China leading construction material testing equipment manufacturer. We will contact you within 1 working day, please pay attention to the email with the suffix “@gtj-test.com”.
Product route
- Category
- Non-Destructive Testing Equipment
- Manufacturer
- GTJ Test
- Industries
- Construction & Infrastructure, Laboratories & Quality Control
- Condition
- New
Product numberGTJ-10 · GTJ-20 · GTJ-30 · GTJ-50 · GTJ-100
Center hole of cylinder27mm · 35mm · 45mm · 60mm · 90mm
Cylinder stroke60mm · 80mm · 80mm · 120mm · 150mm
Measuring range0-100kN · 0-200kN · 0-300kN · 0-500kN · 0-1000kN
Cylinder weight5.5kg · 13kg · 15kg · 25kg · 28kg
Common anchorsΦ6-20 · Φ6-25 · Φ6-32 · Φ6-32 · Φ25-40
Tie rodM18 · M22 · M24 · M30 · M40
Conversion headM6-20 · M6-24 · M6-27 · M6-27 · M6-33
Resolution0.01kN · 0.01kN · 0.01kN · 0.01kN · 0.01kN
Product-specific documentationProvided with the selected technical configuration
