WSC-300
Available on request
Product imagery
GTJ Test

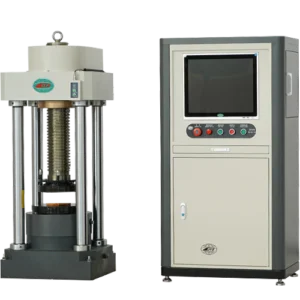

HYE-300D Automatic Cement Compression & Flexural Testing Machine
The series of testing machines are powered by hydraulic pressure. Electro-hydraulic servo control technology is used to test the mechanical properties of cement, mortar, brick, concrete and other building materials. It shows the loading force value, loading speed and loading curve. The test data is automatically processed, stored, and printed.
PriceRequest price
Available on request
Key product information
- Max test force: 300KN/10KN
- Model: HYE-300D
- Size: 560*400*1340MM
- Weight: 520KG
Final specifications, commercial terms, lead time, and documentation are confirmed against your application.
The series of testing machines are powered by hydraulic pressure. Electro-hydraulic servo control technology is used to test the mechanical properties of cement, mortar, brick, concrete and other building materials. It shows the loading force value, loading speed and loading curve. The test data is automatically processed, stored, and printed.
Product route
- Category
- Material Testing Machines
- Manufacturer
- GTJ Test
- Industries
- Construction & Infrastructure, Laboratories & Quality Control, Mining & Mineral Processing
- Condition
- New
Max test force300KN/10KN
ModelHYE-300D
Size560*400*1340MM
Weight520KG
ModelHYE-300D · HYE-300B
Compressiveflexural maximum test force(KN)300/10 · 300/10
Test accuracyLevel 0.5/1 · Level 0.5/1
Compressive piston stroke80mm · 80mm
Anti-floding piston stroke60mm · 60mm
Compressive compression space180mm · 180mm
Flexural compression space180mm · 180mm
Fied upper platen sizeΦ108/Φ60mm · Φ108/Φ60mm
Ball-type upper platen sizeΦ168mm · Φ168mm
Lower platen sizeΦ207mm · Φ207mm
Motor power1.5KW · 0.75KW
Mainframe dimensions560*400*1340mm · 560*400*1340mm
Machine weight520kg · 520kg
Control cabinet dimensions540*500*820mm · 540*500*820mm
Product-specific documentationProvided with the selected technical configuration
Sibtain Pakistan company profileOfficial PDF
Manufacturer informationExternal website
