GTJ Test

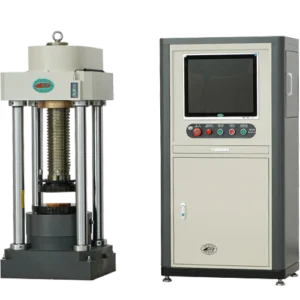

HYE-2000T Electro-hydraulic servo Compression testing machine
This series of testing machines are suitable for concrete and rock compressive strength tests, equipped with appropriate fixtures and measuring devices to meet the concrete split tensile test, flexural test, and static elastic modulus test.
PriceRequest price
Available on request
Final specifications, commercial terms, lead time, and documentation are confirmed against your application.
This series of testing machines are suitable for concrete and rock compressive strength tests, equipped with appropriate fixtures and measuring devices to meet the concrete split tensile test, flexural test, and static elastic modulus test.
Product route
- Category
- Material Testing Machines
- Manufacturer
- GTJ Test
- Industries
- Construction & Infrastructure, Laboratories & Quality Control
Max test force2000KN
ModelHYE-2000T
Size545*900*1260mm, 654*450*1300mm
Weight1300KG
Maximum test force(KN)2000KN
Test accuracyLevel 1/0.5
Measurement resolution1%-100%FS
Main structureFour columns
Compressed space320mm
Piston stroke80mm
Upper pressure plate sizeΦ300
Lower plate size300mm*300mm
Piston displacement speed0-60mm/min
Piston diameter (mm)Φ320
Test force loading speed0.02%-2%FS/S
Effective distance between columns350mm
Host size545*900*1260mm
Overall dimensions of control cabinet654*450*1300mm
Total Weight1300kg
Product-specific documentationProvided with the selected technical configuration
