GTJ Test
HYE-2000C Electro-Hydraulic Servo Compression Testing Machine
PriceRequest price
Available on request
Final specifications, commercial terms, lead time, and documentation are confirmed against your application.
Product route
- Category
- Material Testing Machines
- Manufacturer
- GTJ Test
- Industries
- Construction & Infrastructure, Laboratories & Quality Control
Max test force2000KN
ModelHYE-2000C
Size650*650*1620mm, 985*600*950mm
Weight1600KG
Specification modelHYE-2000C
Maximum test force (KN)2000
Test accuracyLevel 1/ 0.5
Measurement resolution1%-100%FS
Main structure formFour columns
Concrete (rock) elastic modulusScalable configuration
Effective distance between columns(mm)430
Distance between upper and lower platens(mm)410
Adjustment between upper and lower platensCylinder adjustment, block adjustment

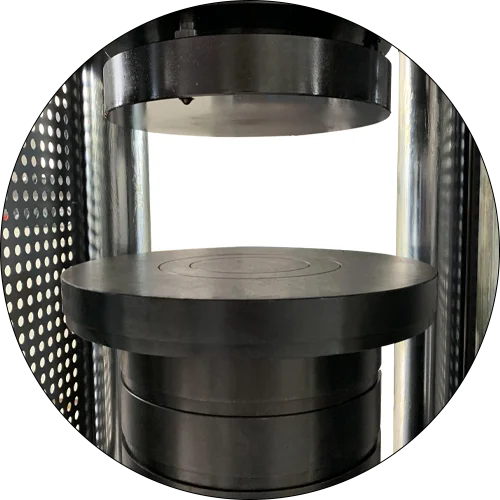

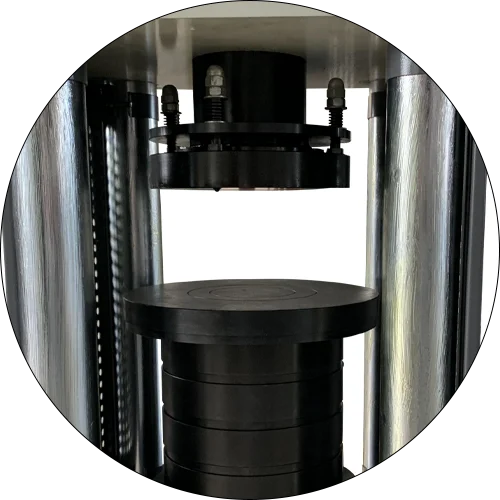

Upper and lower platen sizeФ298
Piston stroke (mm)200
Piston moving displacement speed(mm/min)0-60
Test force loading rate range0.02%-2%FS/s
Piston motion direction controlTwo-way cylinder
Mainframe dimensions (mm)650x650x1620
Control cabinet dimensions(mm)985x600x950
Total power(kW)2.5(AC 380V 50kz) (three-phase five-wire system)
Product-specific documentationProvided with the selected technical configuration
