GTJ Test

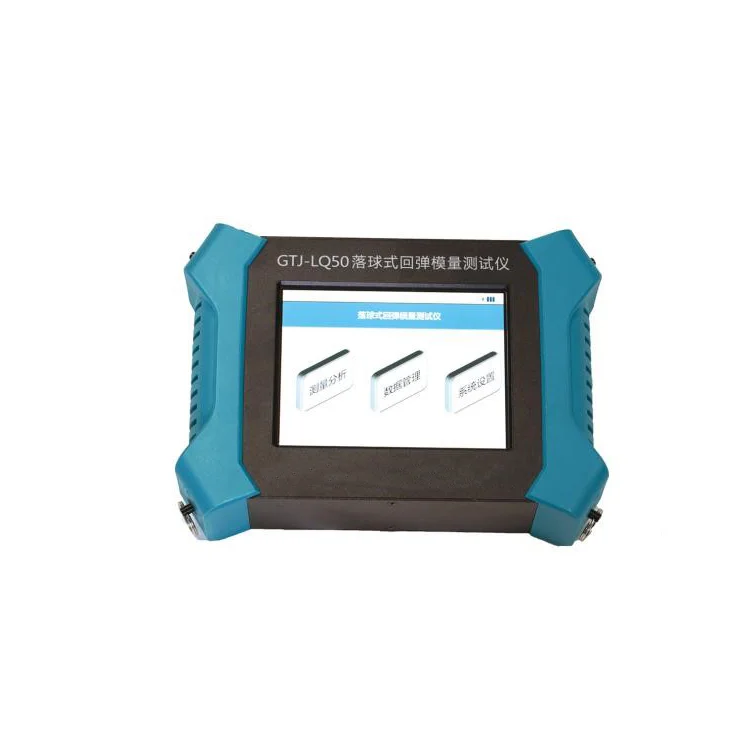

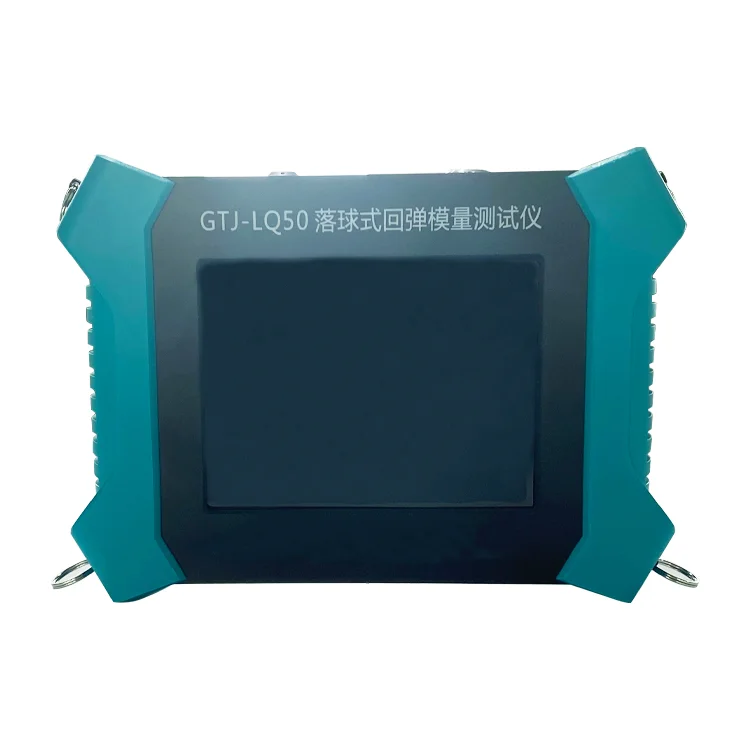

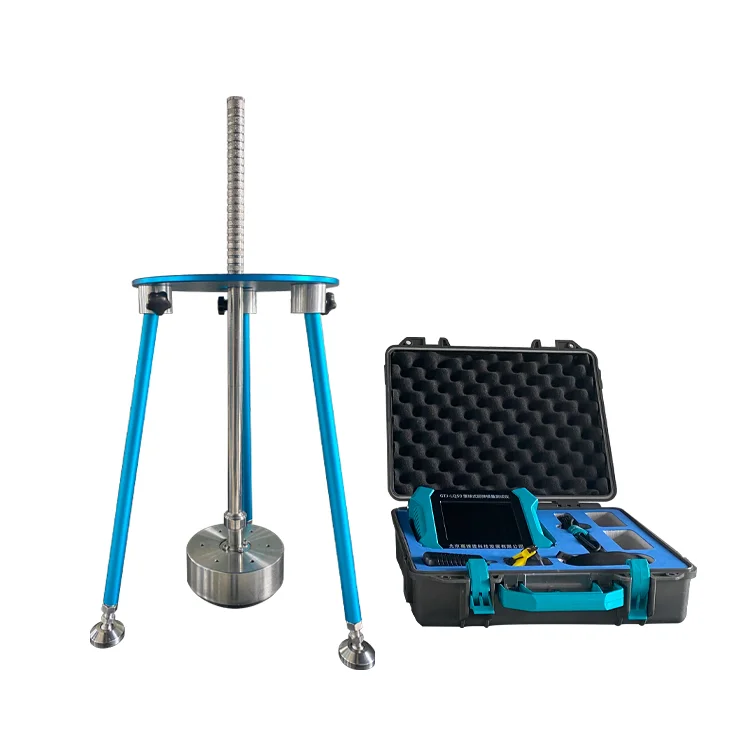

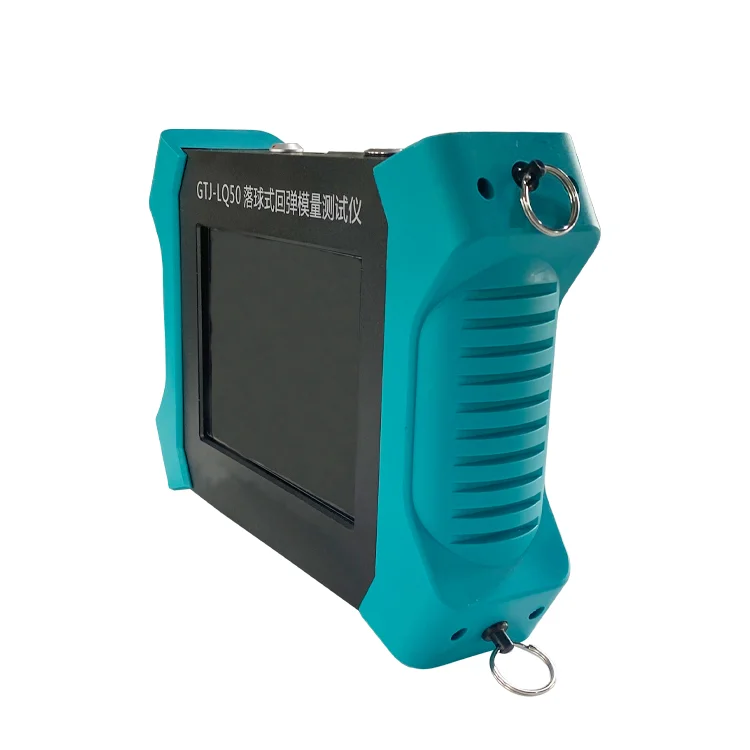

GTJ-LQ50 Falling ball rebound modulus tester
PriceRequest price
Available on request
Key product information
- Product Model: GTJ-LQ50
- System noise voltage: ＜2mV
- Dynamic range: ＞138dB
- Amplifier band: 10Hz~10kHz
Final specifications, commercial terms, lead time, and documentation are confirmed against your application.
Product route
- Category
- Non-Destructive Testing Equipment
- Manufacturer
- GTJ Test
- Industries
- Construction & Infrastructure, Laboratories & Quality Control
- Condition
- New
Product ModelGTJ-LQ50
System noise voltage＜2mV
Dynamic range＞138dB
Amplifier band10Hz~10kHz
A/D resolution16-bit A/D
Sampling time interval2us~32768us
Sampling length1024, 2048, 4096
Time indication error＜1%
Number of channels1
Magnification1~128
Trigger methodSignal trigger
Sensor sensitivity100mV/g
Sensor band1-10000Hz
Continuous working timeMore than 10 hours
Powder supplyBuilt-in rechargeable lithium battery（+7.4V）
Weight1.24Kg
Size220*160*50mm
DisplayCapacitive screen 640*480
Operation methodTouch
Product-specific documentationProvided with the selected technical configuration
Sibtain Pakistan company profileOfficial PDF
Manufacturer informationExternal website
