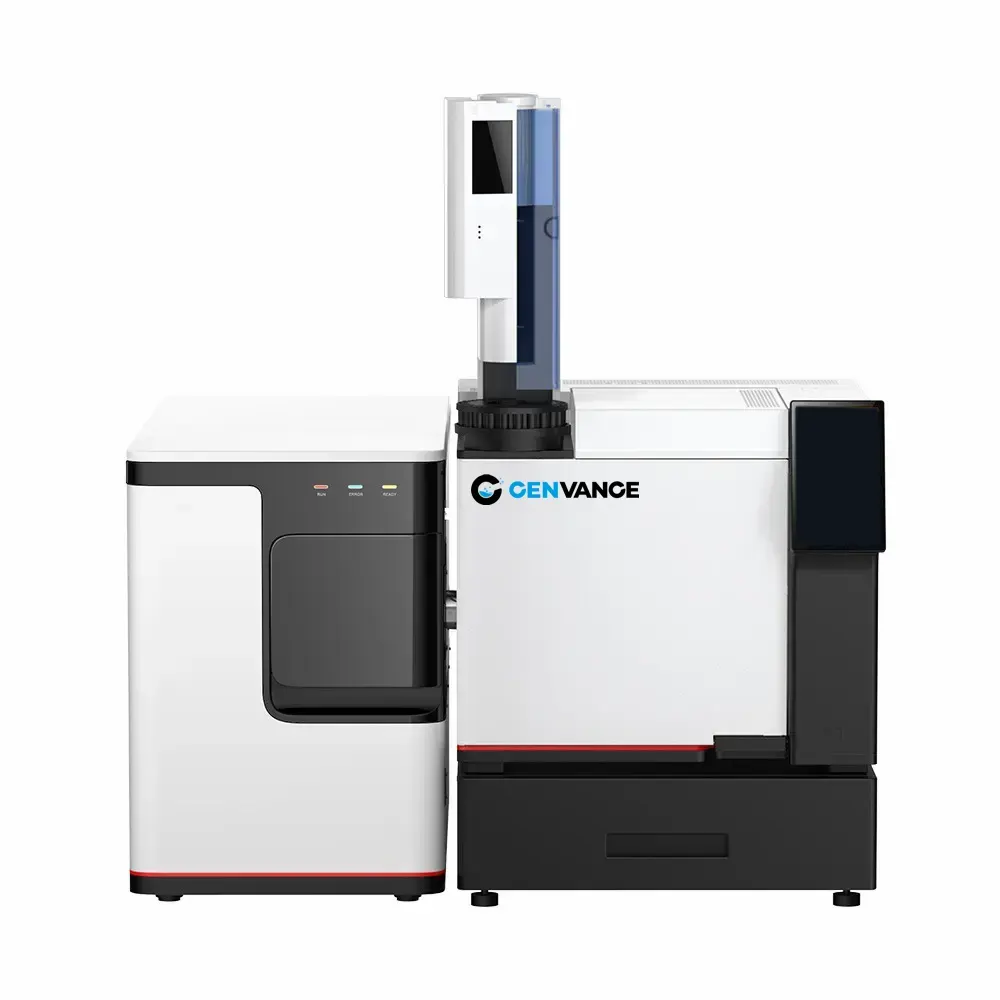

TitleGas Chromatography TriQuadrupole Mass Spectrometer CenVA OptiQuad GCMS700
Work Environment Temperature18–25 ℃• Humidity: 20–60% RH• Power Supply: 5 × single-phase 220V AC (±20%), 10A, 50 Hz
Column Oven Max Temperature450 ℃• Heating Rate: 120 ℃/min (typical 50 ℃/min) • Cooling: 450 ℃ → 50 ℃ in 5 min• 32-step, 33-stage temp program• Accuracy: ±0.1 ℃• Holds up to 3 capillary columns
Gas Circuit System Programmable electronic gas control• Modesconstant pressure, constant flow, programmed boost, upflow• Flow Control: 0–500 mL/min (N₂), 0–1000 mL/min (He, H₂)• Pressure Control: 0–100 psi (±0.001 psi accuracy)• Up to 18 EPC channels• Auto pressure & temperature compensation
Automatic Sampler Supports 16-position or 110-position autosampler• Injection Volume0.1–250 µL (16-bit) or up to 500 µL (110-bit)• Accuracy: ±0.01%• Precision: RSD < 0.5%
[](https//www.instagram.com/cenvance_innovations_ltd._uk)[](http://cenvance.com/lab-equipment/chromatography-systems/gas-chromatography-mass-spectrometry/gas-chromatography-triquadrupole-mass-spectrometer-cenva-optiquad-gcms700/)[](https://www.linkedin.com/company/cenvance-innovation-ltd-uk/)[](https://wa.me/+442033183727)
https//www.cenvance.com
Temperature18–25 ℃• Humidity: 20–60% RH• Power Supply: 5 × single-phase 220V AC (±20%), 10A, 50 Hz
Max Temperature450 ℃• Heating Rate: 120 ℃/min (typical 50 ℃/min) • Cooling: 450 ℃ → 50 ℃ in 5 min• 32-step, 33-stage temp program• Accuracy: ±0.1 ℃• Holds up to 3 capillary columns
Programmable electronic gas control• Modesconstant pressure, constant flow, programmed boost, upflow• Flow Control: 0–500 mL/min (N₂), 0–1000 mL/min (He, H₂)• Pressure Control: 0–100 psi (±0.001 psi accuracy)• Up to 18 EPC channels• Auto pressure & temperature compensation
Supports 16-position or 110-position autosampler• Injection Volume0.1–250 µL (16-bit) or up to 500 µL (110-bit)• Accuracy: ±0.01%• Precision: RSD < 0.5%
