W202
Available on request
GTJ Test
W202 Wireless concrete crack width gauge
F230 Wireless concrete crack width gauge is used to measure crack width in concrete buildings such as houses, roads, and bridges.
Product imagery
GTJ Test

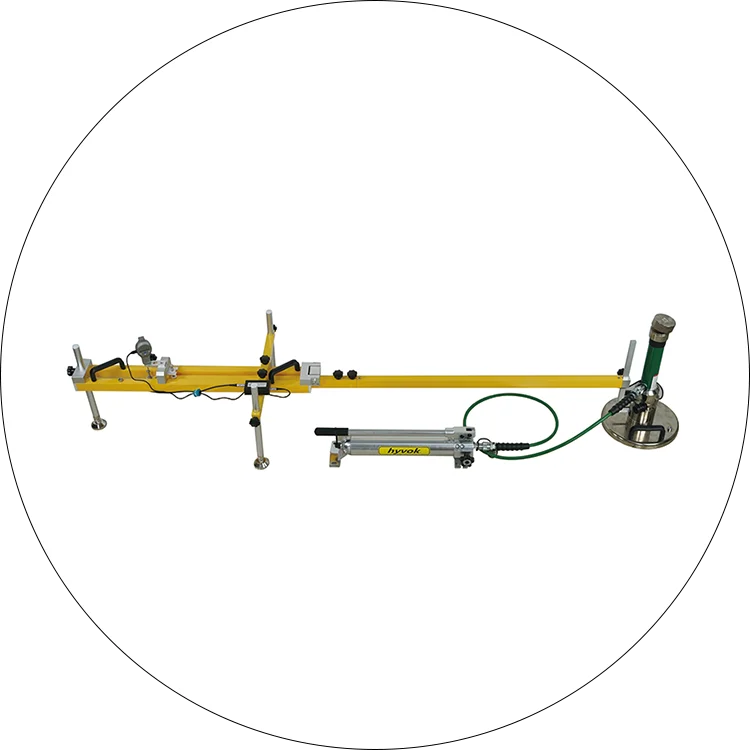

Ev2 Static deformation modulus tester
Ev2 Plate bearing test set is used to measure the settlement value of Subgrade under static load, so as to evaluate the bearing capacity and deformation of subgrade. It is suitable for monitoring and monitoring the construction quality of railway, highway, airport, urban traffic, port, wharf, and industrial and civil buildings subjected to static load. Soil-rock mixed fillers with particle size less than 1/4 of the diameter of bearing plate
PriceRequest price
Available on request
Key product information
- Test scope of application Applicable Soil Types: Soil-rock mixed fillers with particle size less than 1/4 of the diameter of bearing plate
- Test scope of application Test impact depth: 0~500mm
- Work environment: Temperature-10~40 Humidity
- Storage capacity: 400 sets of test data
Final specifications, commercial terms, lead time, and documentation are confirmed against your application.
Ev2 Plate bearing test set is used to measure the settlement value of Subgrade under static load, so as to evaluate the bearing capacity and deformation of subgrade. It is suitable for monitoring and monitoring the construction quality of railway, highway, airport, urban traffic, port, wharf, and industrial and civil buildings subjected to static load. Soil-rock mixed fillers with particle size less than 1/4 of the diameter of bearing plate
Product route
- Category
- Non-Destructive Testing Equipment
- Manufacturer
- GTJ Test
- Industries
- Construction & Infrastructure, Laboratories & Quality Control, Railways, Roads & Highways
- Condition
- New
Test scope of application Applicable Soil TypesSoil-rock mixed fillers with particle size less than 1/4 of the diameter of bearing plate
Test scope of application Test impact depth0~500mm
Work environmentTemperature-10~40 Humidity
Storage capacity400 sets of test data
Data transmission modeData line transmission
Power supply modeLarge-capacity lithium battery,working time is more than 18 hours
Pressure Sensor Range100kN
Displacement sensor range25mm.resolution 0.01 mn
Product ModelEv2
Test scope of applicationApplicable Soil Types · Soil-rock mixed fillers with particle size less than 1/4 of the diameter of bearing plate
Test impact depth0~500mm

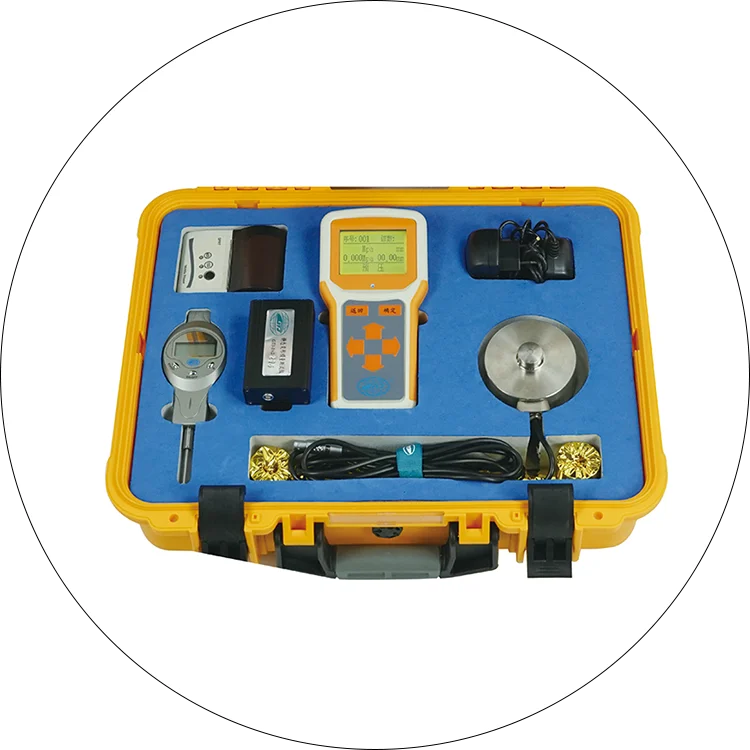

HandhelahostSpecifications · Screen size: 3 inches
Power supply modeLarge-capacity lithium battery, working time is more than 18 hours
Display modeHandheld host screen. Chinese and English switching display
PrinterConnection mode · Wireless Bluetooth Printing
SensorPressure Sensor Range · 100kN
Data Acquisition DeviceBearing plate · Diameter: 300mm

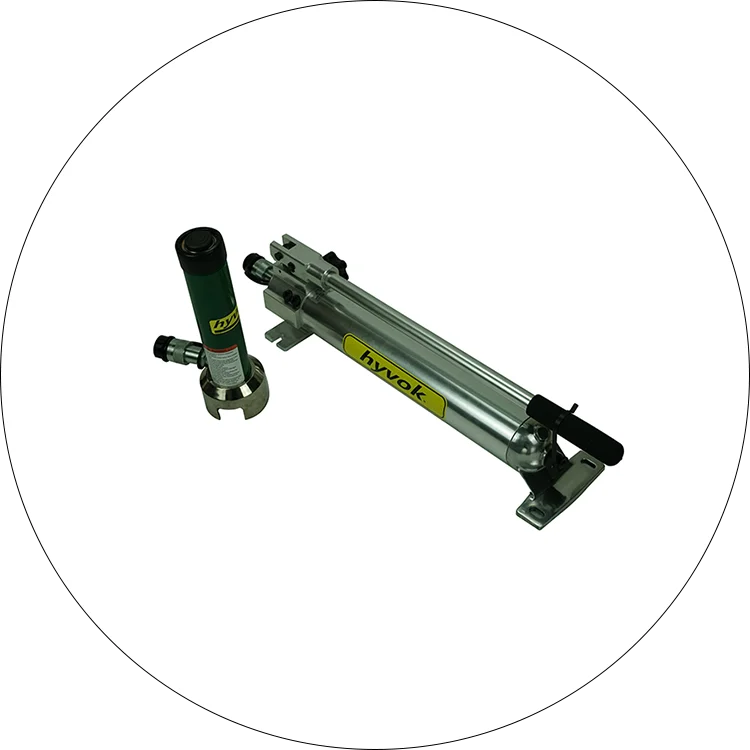

Loading deviceHydraulic Pump: Pressure 100 kN

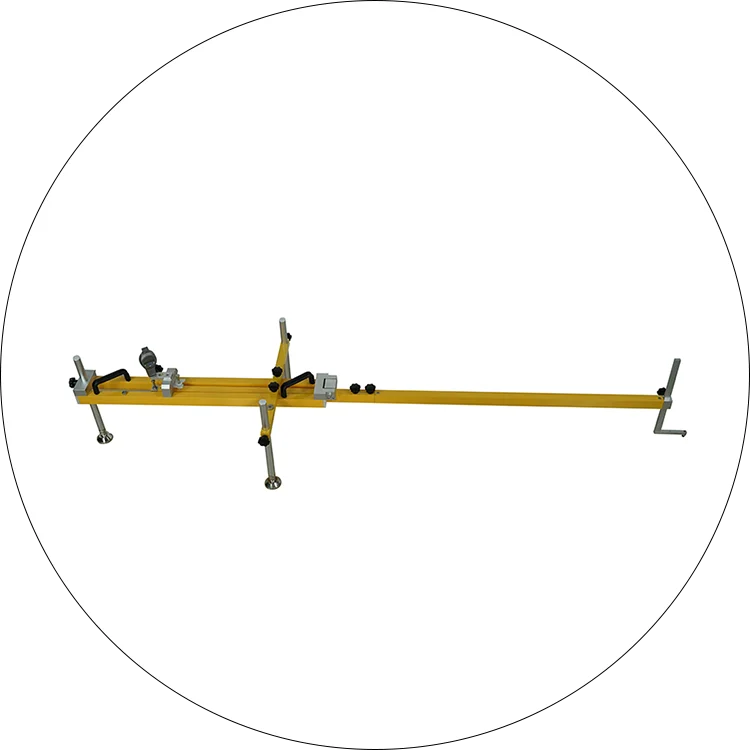

Settlement measurement deviceThree-point bracket(with retractable,Rotary lever arm adjustable base)
Product-specific documentationProvided with the selected technical configuration
Sibtain Pakistan company profileOfficial PDF
Manufacturer informationExternal website
