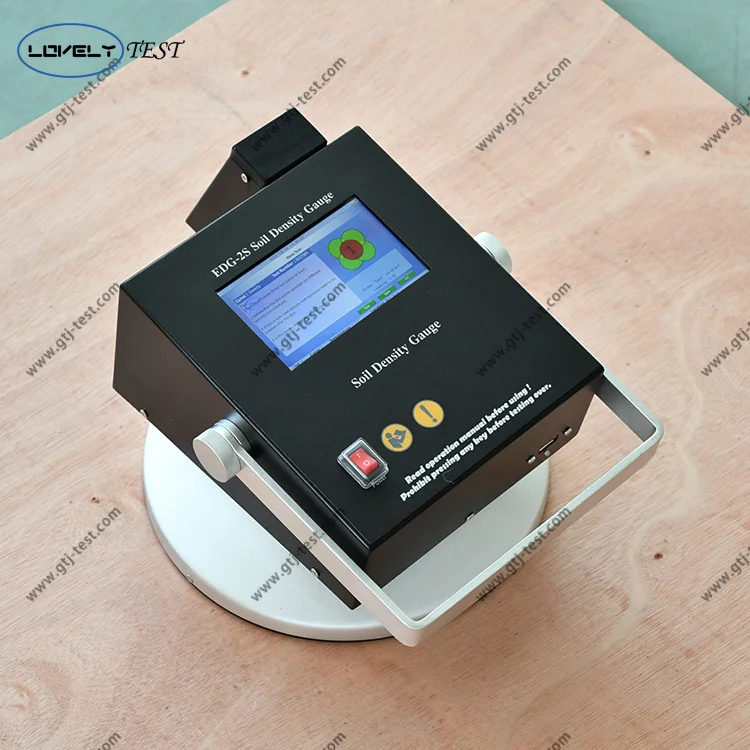

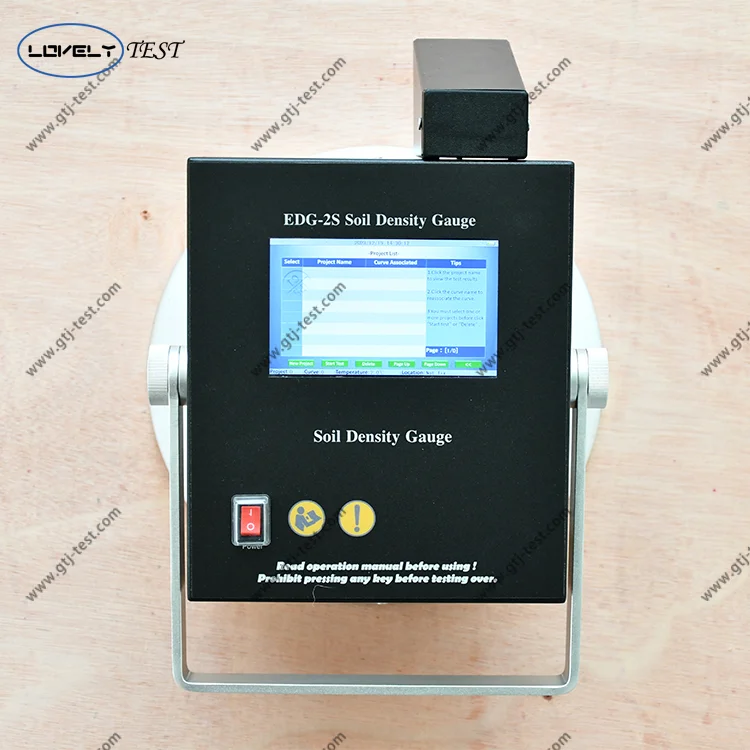

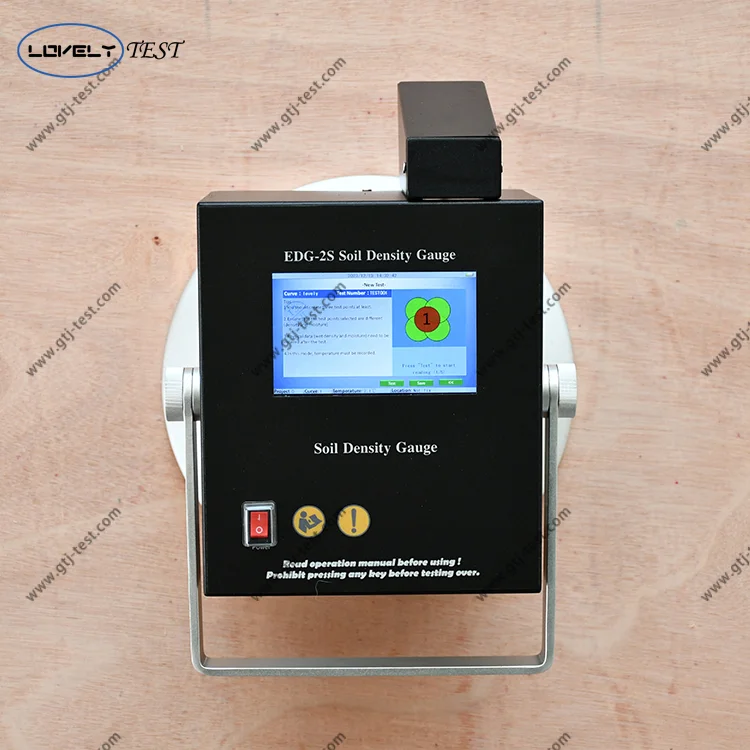

EDG-2S Non-nuclear Soil Density Gauge
The EDG-2S Non-nuclear soil density gauge (EDG) accurately measures soil density, moisture content and compaction in roads and foundations. The measurement accuracy depends mainly on the correct use of the operator, so a detailed reading of this operating manual will be available. Help you to use the product better. Waterproof connection, but it is best not to use it in rainy days According to the typical compacted soil dry density accuracy: within 3% of the standard physical test
PriceRequest price
Available on request
Key product information
- EDG host and connector: Waterproof connection, but it is best not to use it in rainy days
- Wet density range: According to the typical compacted soil dry density accuracy: within 3% of the standard physical test
- Moisture content range: According to the accuracy of typical compacted soil moisture content: within 3% of the standard physical test
- Maximum RS -232 cable length: 100cm
Final specifications, commercial terms, lead time, and documentation are confirmed against your application.
The EDG-2S Non-nuclear soil density gauge (EDG) accurately measures soil density, moisture content and compaction in roads and foundations. The measurement accuracy depends mainly on the correct use of the operator, so a detailed reading of this operating manual will be available. Help you to use the product better. Waterproof connection, but it is best not to use it in rainy days According to the typical compacted soil dry density accuracy: within 3% of the standard physical test
Product route
- Category
- Soil Testing Equipment
- Manufacturer
- GTJ Test
- Industries
- Construction & Infrastructure, Laboratories & Quality Control, Roads & Highways
- Condition
- New
EDG host and connectorWaterproof connection, but it is best not to use it in rainy days
Wet density rangeAccording to the typical compacted soil dry density accuracy: within 3% of the standard physical test
Moisture content rangeAccording to the accuracy of typical compacted soil moisture content: within 3% of the standard physical test
Maximum RS -232 cable length100cm
Internal power supply12V nickel-hydrogen, 2000mAh capacity
Battery lifeAbout 24 hours
Operating temperature range0 to 50℃
Humidity range5% to 90%
Product nameNon-nuclear gauge（NDT）
Display5.0 inch display
Battery10400mAh Lithium-ion rechargeable battery
Electromagnetic frequency40~100K,Low frequency radiationless
Wet density rangeStandard compacted soil field range
Dry density accuracyWithin 3 % of standard tests
Humidity rangeStandard compacted soil field range
Humidity accuracyWithin 3 % of standard tests
Environment temperature-20 °C～50 °C
Temperature compensationyes
Storage capacity4200 engineering test sites，24 soil models
Ambient humidity5~90%
Measuring Depth50-300mm
InteractionTouch Screen
GPSStandard configuration
wireless data transmissionOptional configuration
Report export methodInstall the PC data export software and actuate
Special FunctionsNondestructive measurement
Battery life>12h(Medium backlight condition)
Charge modeUSB 5V recharge
Main engine size270mm×270mm×280mm
Net weight3.0kg
Product-specific documentationProvided with the selected technical configuration
Sibtain Pakistan company profileOfficial PDF
Manufacturer informationExternal website
