GTJ Test

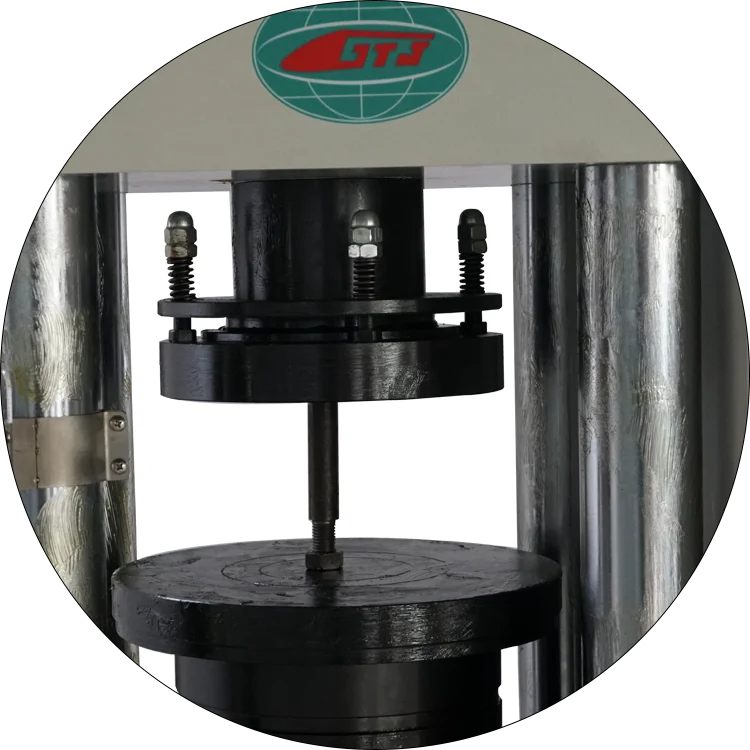

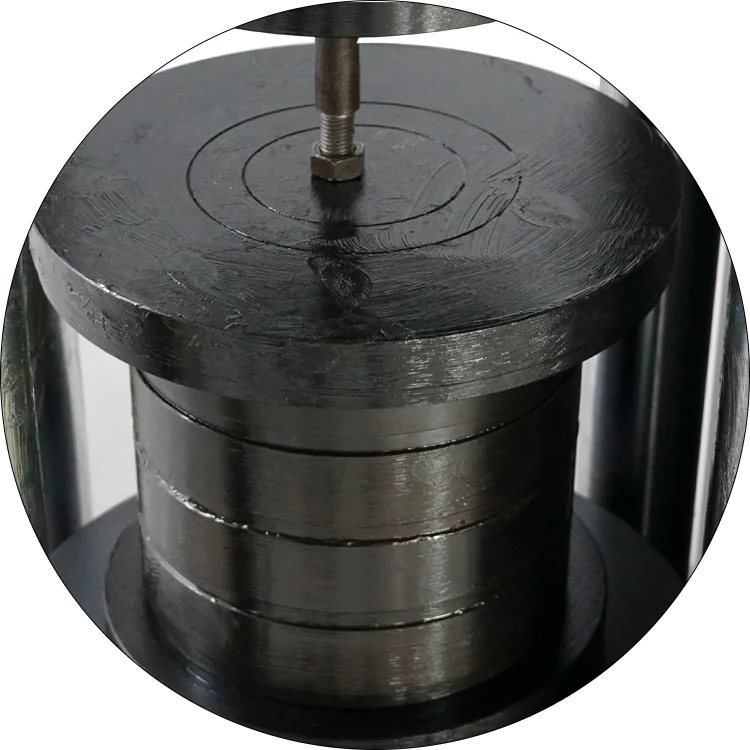

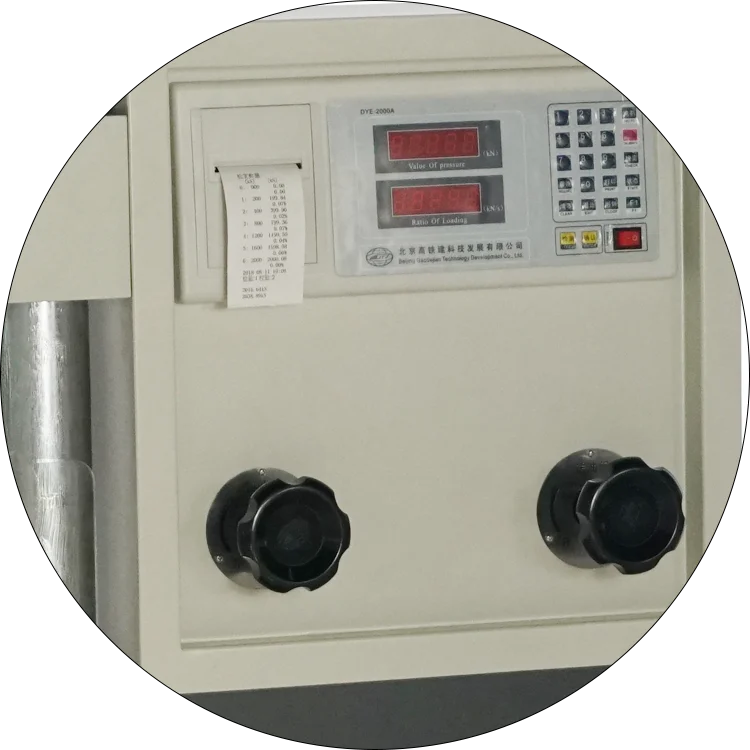

DYE-2000 Digital Compression Testing Machine
The series of testing machines are powered by hydraulic pressure. Manual control technology is used to test the mechanic a property of rock, mortar, brick, concrete and other building materials. It shows the loading force, loading speed, etc. Test data are automatically processed, stored and printed.
PriceRequest price
Available on request
Final specifications, commercial terms, lead time, and documentation are confirmed against your application.
The series of testing machines are powered by hydraulic pressure. Manual control technology is used to test the mechanic a property of rock, mortar, brick, concrete and other building materials. It shows the loading force, loading speed, etc. Test data are automatically processed, stored and printed.
Product route
- Category
- Material Testing Machines
- Manufacturer
- GTJ Test
- Industries
- Construction & Infrastructure, Laboratories & Quality Control, Mining & Mineral Processing
ModelDYE-2000
Max test force2000KN
Motor power (KW)0.75
Size900*400*1150MM
Weight920KG
ModelDYE-2000 · DYE-2000A
NameDigital compression testing machine · Digital compression testing machine
Max. test force (KN)2000 · 2000
Test accuracyLevel 1 · Level 1
Space adjustment methodPad adjustment · Screw adjustment
Piston stroke (mm)80 · 80
Sensor typeOil pressure · Oil pressure
Max. Distance between two platens (mm)400 · 400
Upper platen size (mm)Ф225 · 240*240
Lower platen size (mm)Ф295 · 350*260
Motor powder (KW)0.75 · 0.75
Power Supply380V or customized · 380V or customized
Mainframe dimensions (mm)900x400x1150 · 900x400x1300
Overall weight(kg)920 · 900
Product-specific documentationProvided with the selected technical configuration
