ZJ-4A
Available on request
Product imagery
GTJ Test

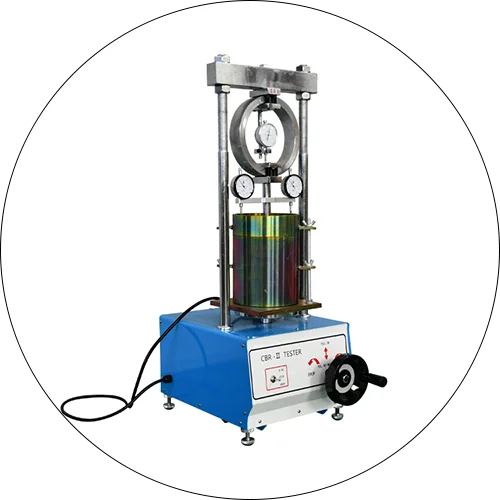

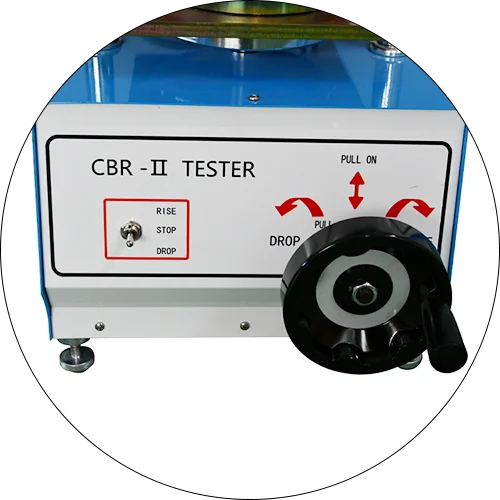

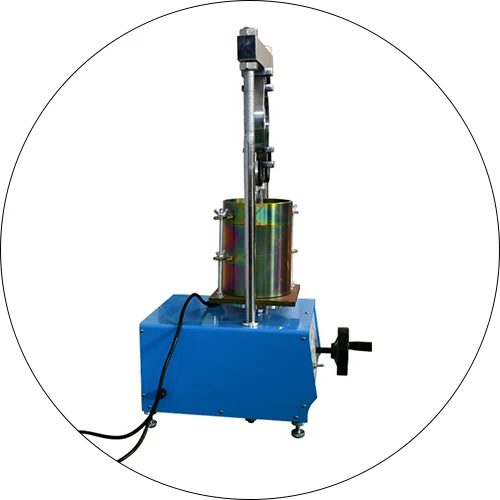

CBR -II Electrical CBR Test Machine/ Manual Cbr Machine for Soil Testing Equipment
The California bearing ratio (CBR) tester is used to test the load-bearing ratio of various soil and pavement base materials and base materials after making parts in a specified test cylinder. Technology Parameters 1. Load-bearing Ratio Tester:
PriceRequest price
Available on request
Final specifications, commercial terms, lead time, and documentation are confirmed against your application.
The California bearing ratio (CBR) tester is used to test the load-bearing ratio of various soil and pavement base materials and base materials after making parts in a specified test cylinder. Technology Parameters 1. Load-bearing Ratio Tester:
Product route
- Category
- Soil Testing Equipment
- Manufacturer
- GTJ Test
- Industries
- Construction & Infrastructure, Laboratories & Quality Control, Roads & Highways
Max test force30KN /50KN
Press speed1mm/min
ProductCBR Tester for soil testing
Max. Test Force30KN /50KN
Penetrating rodend face diameter Φ50mm, length 100mm

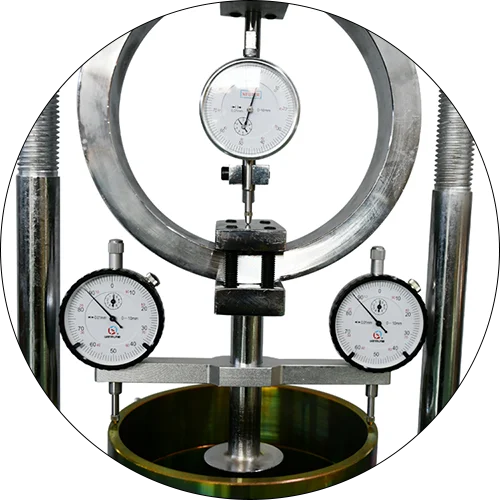

Dial indicator0-10mm, 2 pcs
Multi-well plateone piece
Load board4 pieces (outer diameter Φ150mm, inner diameter Φ52mm)
Test cylinderinner diameter Φ152mm, height 170mm, spacer Φ151mm, height 50mm, same as heavy-duty compaction test cylinder
Packing Weigh85KGs
Product-specific documentationProvided with the selected technical configuration
Sibtain Pakistan company profileOfficial PDF
Manufacturer informationExternal website
